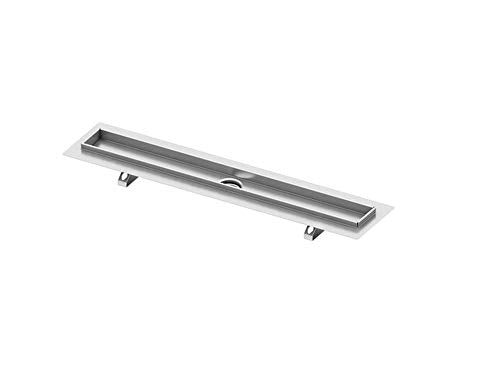

TECE Drainline 600900 Shower Channel Straight Stainless Steel Polished Improved Water Outflow Silver
- The surface is made of polished stainless steel
- The nominal length is 90 cm
- This is a gutter body with flange.
Details: Drain body straight Suitable for installation in the screed, with flange and Tecedrain line gutter seal system sealing tape, on the execution of approved and certified be connected the watertight. Set consists of: Drain Body with flange made from polished stainless steel, material 1.4301 (304) seal system sealing tape with fleece lining for Bauseitigen inserting into the liquid or Bahnenförmige watertight connecting shackle for anchoring to the screed and for attaching optional installation to legs with a centre connection support for drain with inner gradient to improve the water drain and self-cleaning effect seals installation Length including = 911 mm Visual length: Installation = 851 mm shell widths including flange = 151 mm Field of view as mounting = 71 mm, total height: up Okff (we will prepare the lighting voltage according to outlet): 65 mm Outlet Vertical 67 mm Super Slim 95 mm Flat 120 mm Outlet Standard 148 mm MAX Please order separately: design Rust or tile Drain Mounting feet (Optional) sound protection mat Drain Base (Optional), ensures the correct installation sound levels in accordance with DIN 4109 and the VDI 4100 Mid Levels Of Protection (SST (TM)) controls i to III
Binding: DIY & Tools
Item Condition: New
